Lhoumeau Sky System
BEAMER
LSS-BLOC
CONDENSOR
ADJUSTMENT
TRUNCATED
Etrier_simple
Simple pliers


There are many solutions to adapt the optics to a diagonal, but the adjustment system of the entire block is more problematic.

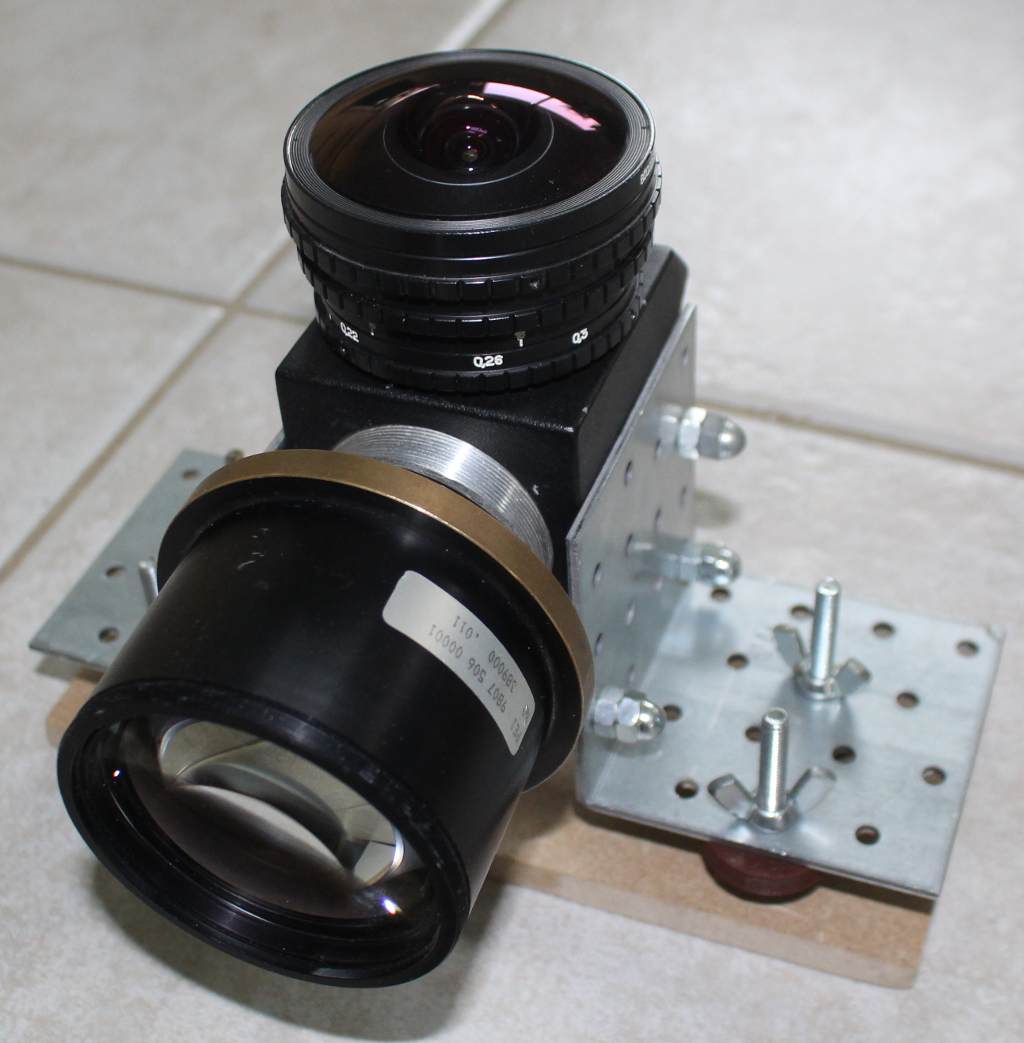

Here is a simple solution using 2 metal brackets to form a stirrup.

The diagonal is taken in pincers and immobilized in the plier, by moderately tightening the 3 bolts.
Some holes have been enlarged to allow the insertion of the 3 bolts (6.5mm holes), as well as the 4 adjustment rods (8mm holes) giving sufficient movement to allow fine and progressive adjustment.

Supplies:
-Plier
2 brackets 60x80
3 screws 6x80
9 6mm nuts + 3 cap nuts

-based:
4 rods 6mm
4 nuts 6mm with large washer (here 3D printed)
4 butterfly screws (or 4 nuts / 3D printing as below)
Wooden base (or fixed directly on frame)
